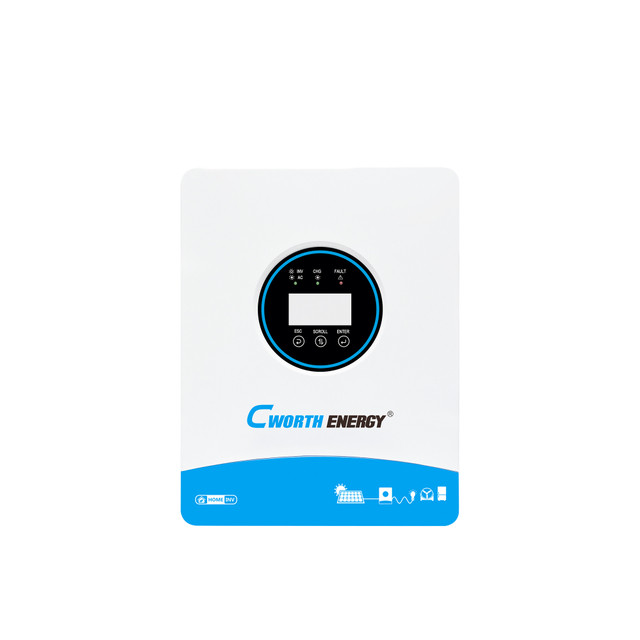

1.8 kVA Inverter
- Output
- 1500 W
- DC Voltage
- 12 V
- Weight
- 5.5 kg
Solar Hybrid Inverter
Power for
Power for
your operation
CE-H1.8KCE-H1.8K-ECOCE-H3.6K-ECOCE-H4KCE-H6K-ECOCE-L10KCE-H12K-TS5
Rated Output1500 W
DC Input Voltage12 V
Output WaveformPure sine wave
Net Weight5.5 kg
Series
CE-H1.8K
Technical specifications by model
Specifications are for reference only and may vary by production batch and region.
This is Cworth Energy.
Intelligent power conversion
We engineer solar hybrid inverters that seamlessly bridge sunlight, battery and grid — delivering clean, pure sine wave power from 1.8 kVA to 12 kW for homes, businesses and industrial sites across 50+ countries.
Core technology
Engineered for performance
Three pillars that make Cworth inverters the dependable backbone of any solar system.
01
Built-in MPPT solar charger
Maximum Power Point Tracking extracts every available watt from your panels with up to 210 A charging current and a wide 85–450 V PV voltage range, optimising harvest from dawn to dusk.
02
Pure sine wave output
Clean, utility-grade 230 V AC power at >93% peak efficiency protects sensitive electronics, motors and appliances — with less than 20 ms transfer time between solar, battery and grid.
03
Parallel & 3-phase ready
Stack up to 12 units in parallel for 72+ kW of combined output, or configure three single-phase units for a full 3-phase system — scaling power without scaling complexity.
Product combination
Complete solar energy system
A fully integrated power solution pairing Cworth hybrid inverters with gel or lithium battery banks and all-in-one energy storage units — engineered to work seamlessly together for homes, businesses and off-grid installations.
Hybrid inverter + battery + storageSolar inverter, battery bank and all-in-one unit combined into one coherent system.
Plug-and-play integrationEvery component is pre-matched for compatibility — from MPPT charging to battery management.
Interface layout
Every port, clearly labelled
A thoughtfully arranged connection panel makes installation fast and error-free — from battery and AC terminals to communication and parallel-connection ports.
1Battery − connection port
2Battery + connection port
3AC input breaker
4AC output breaker
5Communication port
6Dry contact port
7DC fan
8Parallel connection terminal
9AC input terminal
10AC output terminal
CE-L10K (10KVA)
System connection
One inverter, complete energy flow
Sitting at the heart of your setup, the Cworth inverter intelligently manages power between your battery bank, the utility grid and every connected load.
Solar
PV input
Harvests DC power from your solar array and feeds it straight into the inverter.
Store
Battery pack
Stores surplus energy and discharges it on demand for true, seamless backup.
Grid
AC input
Draws from or synchronises with the utility grid whenever it is required.
Power
Output (Load)
Delivers clean pure sine wave power to every connected appliance.
CE-H1.8K / CE-H4K / CE-H6K / CE-H12K
The full range
One inverter family, every power need
From compact home backup to heavy industrial loads, the Cworth inverter family scales from 1.8 kVA to 12 kW — all with pure sine wave output and built-in solar charging.

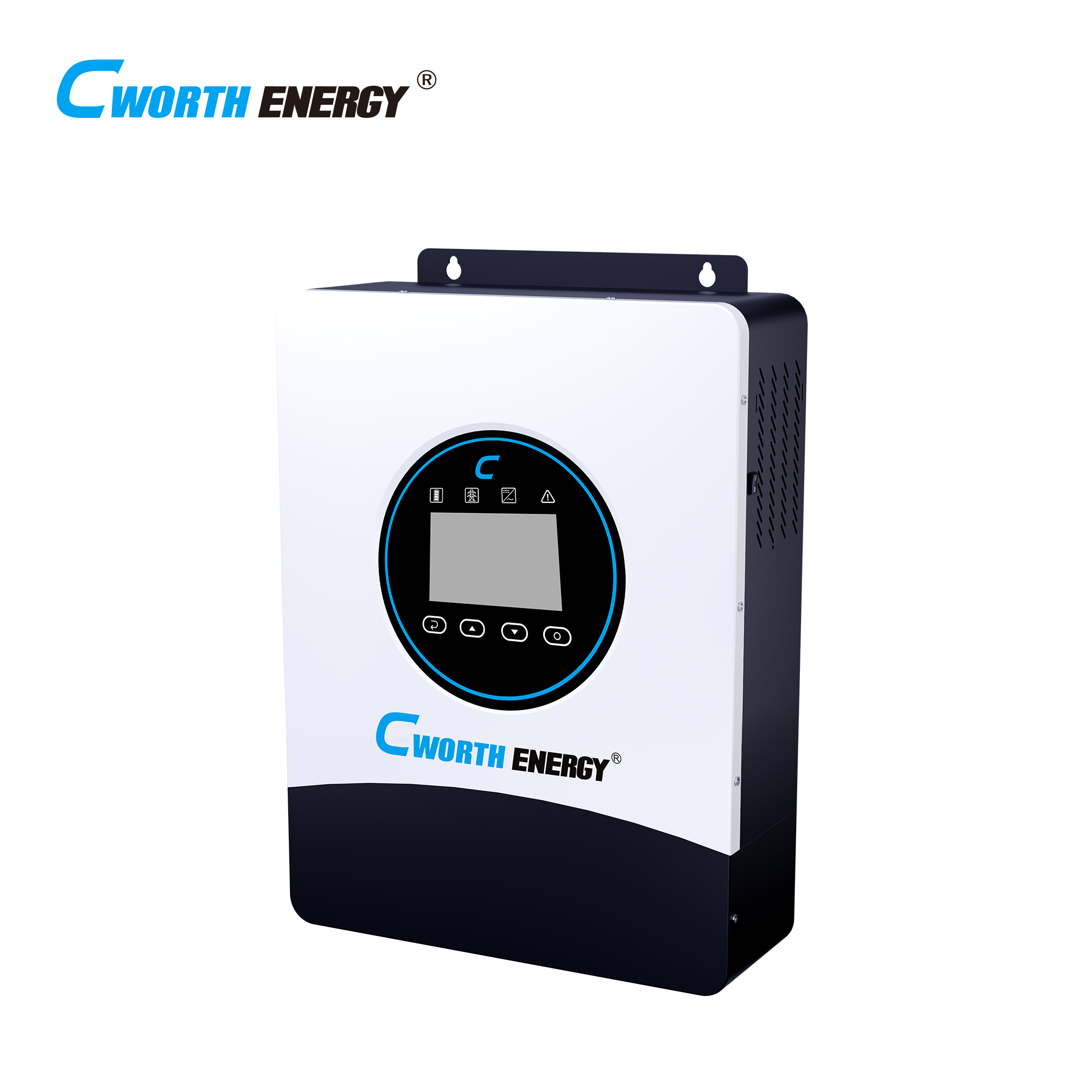

1.8 kW HF Inverter
- Output
- 1.8 kW
- DC Voltage
- 12 V
- Type
- High frequency

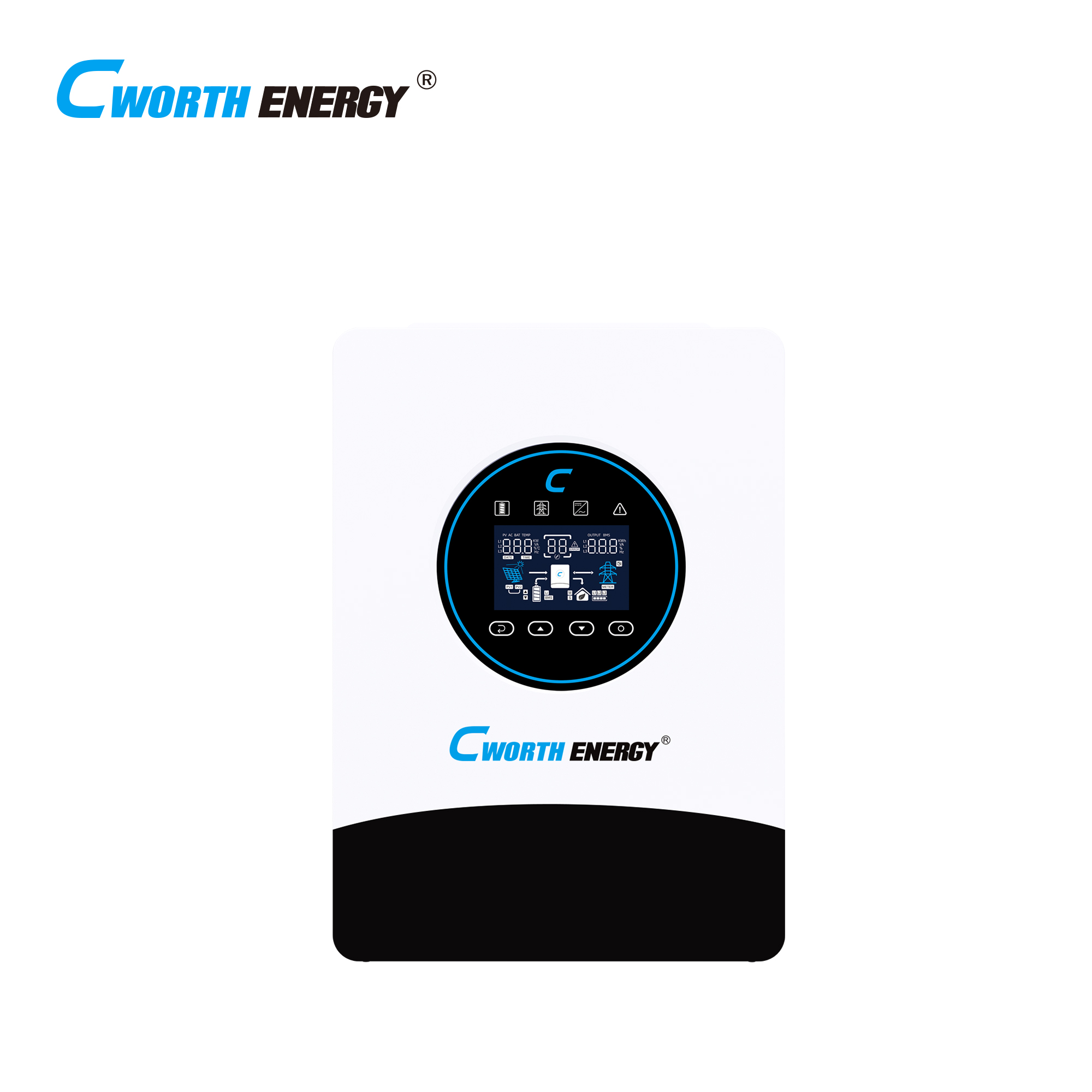

3.6 kW HF Inverter
- Output
- 3.6 kW
- DC Voltage
- 24 V
- Type
- High frequency

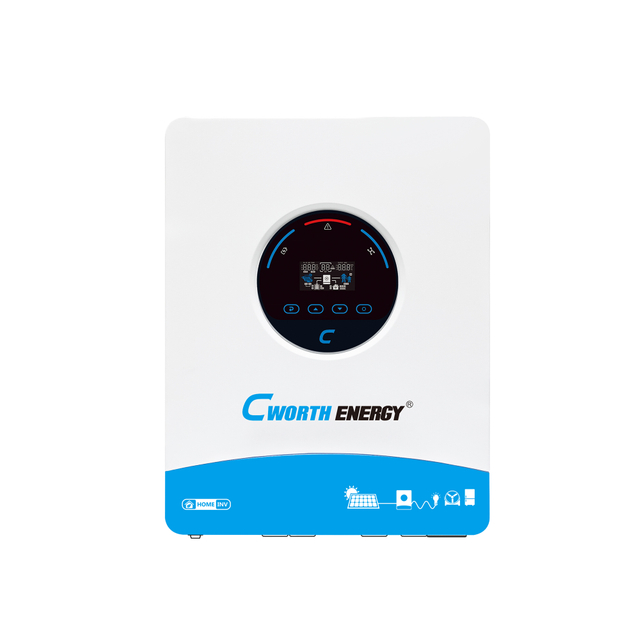

4 kVA Inverter
- Output
- 4000 W
- DC Voltage
- 24 V
- Weight
- 9.2 kg

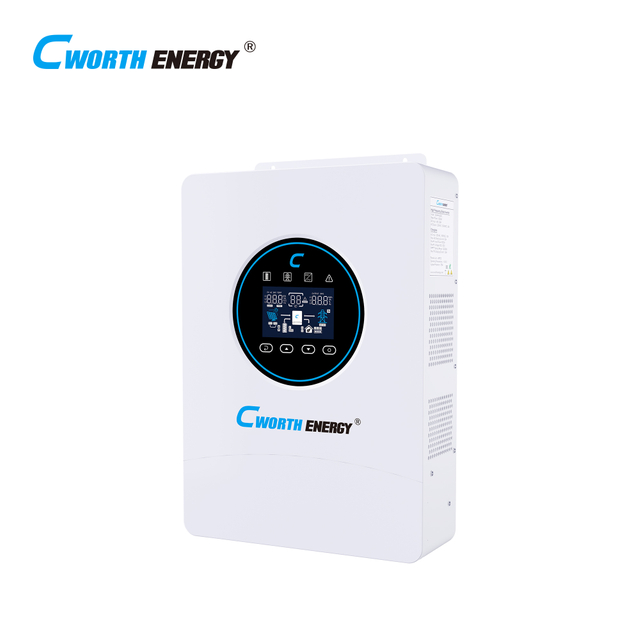

6 kW Inverter
- Output
- 6000 W
- DC Voltage
- 48 V
- Weight
- 13 kg
10 kW Inverter
- Output
- 8000 W (10 kVA)
- DC Voltage
- 48 V
- Weight
- 55 kg

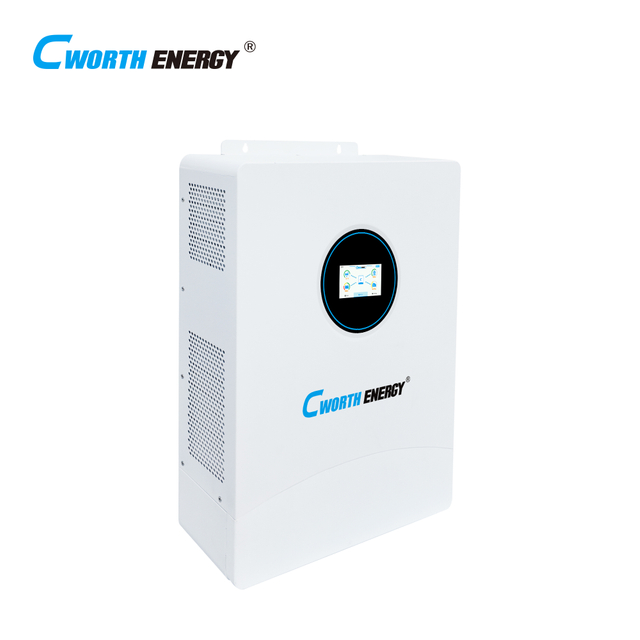

12 kW Inverter
- Output
- 12000 W
- DC Voltage
- 48 V
- Weight
- 27 kg
Key features
Engineered down to the last detail
Every Cworth inverter is built around intelligent charging, wide-range compatibility and a comprehensively upgraded safety architecture — so it performs reliably wherever it is installed.
Wide AC input rangeAccepts 90–280 V AC input, staying stable through unstable grids and generators.
50 / 60 Hz compatibleAuto-adapts to either mains frequency for use in any region worldwide.
Selectable charge prioritySet charging and discharge priorities to match solar, battery or grid strategy.
Upgraded safety designComprehensive multi-layer protection guards the unit, batteries and connected loads.
High charging currentPowerful charge current refills batteries faster, shortening downtime.
Bypass chargingCharges batteries directly from mains while simultaneously powering loads.
Communicates with MPPTTalks to the built-in solar charger to optimise harvest across the day.
Multiple battery typesWorks with AGM, flooded, gel and lithium chemistries out of the box.
Self-defined battery modeFine-tune voltage set-points for custom battery banks and edge cases.
Stable performanceConsistent pure sine wave output that keeps sensitive electronics safe.
Multistage chargingBulk, absorption and float stages extend overall battery life.
Reliable by designField-proven engineering delivers dependable power year after year.
